3 Layer 5 Layer Carton Folder Gluer Machine Fully Automatic Pneumatic Driven

Brand Name : Hh

Model Number : 2800mm

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : negotiated

Payment Terms : T/T, L/C

Supply Ability : 10 sets every month

Delivery Time : 15-30 days

Packaging Details : plastic

name : High Speed Fully Automatic Carton Folder Gluer Machine

warranty : one year

Voltage : 380v/50hz 220v/60hz

Driven type : electric , pneumatic

max.size : 2800*1200mm

Min.size : 170*420mm

Feeding way : Continuously Feeding

Glue type : Water-base Cold Water

function : Carton Folder Gluer Machine

speed : 0-100pcs/min

Core Components : PLC, Gearbox, Gear

Dimension(L*W*H) : 12000*2000*1500mm

color : yello, blue, white or customized

weight : 6500KG

Contact Now

3 Layer 5 Layer Fully Automatic Carton Folder Gluer Machine
Automatic folder gluer machine mainly consists of three parts: feeding part, folding gluing part and stacking counting part, full machine frame made by good quality steel welded .
It adopts PLC programming control, touch screen operation and frequency conversion to adjust speed. The average speed about 150sheets/min, with high speed, saves power and labor

Main specification

team	value
Brand Name	Hh
Condition	New
Warranty	1 Year
After-sales Service Provided	Online support
Key Selling Points	Easy to Operate
Max size (L+W)*2	2800mm
Dimension(LWH)	3.8x2x1.5m
Speed	60m/min
Machine weight	1250kg

3 Layer 5 Layer Carton Folder Gluer Machine Fully Automatic Pneumatic Driven

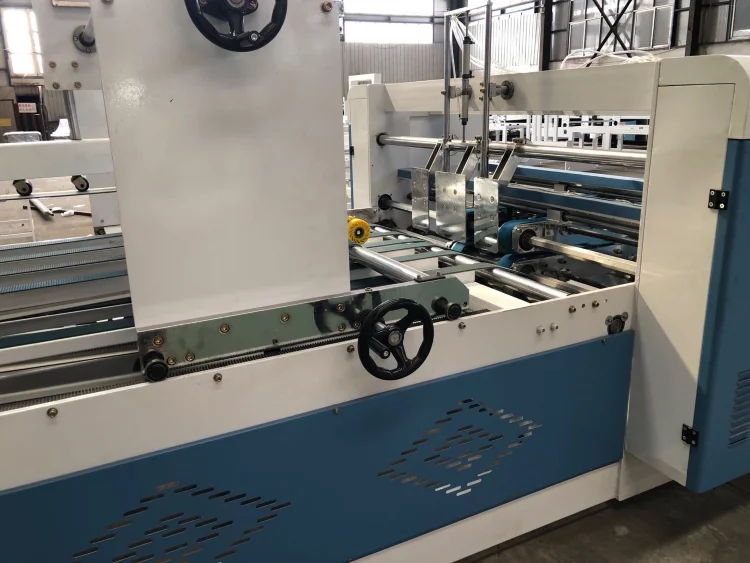

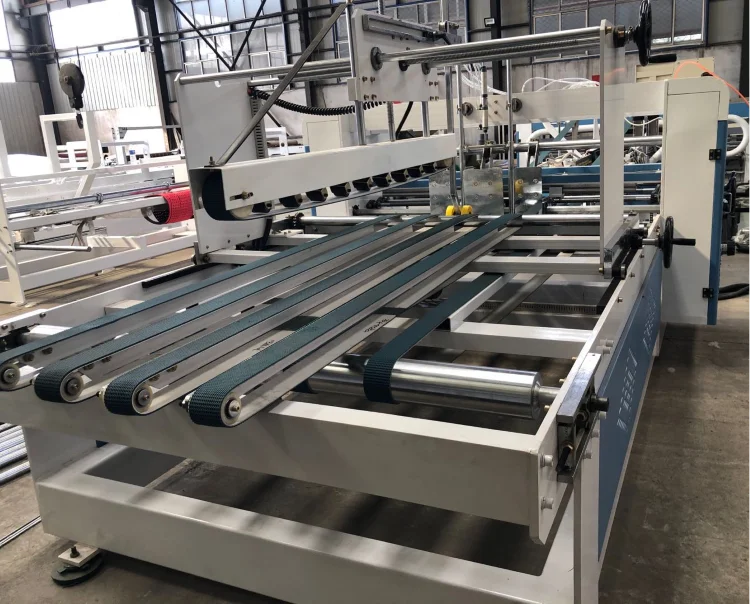

Feeding part
Belt type lead edge with vacuum suction feeding system is more better to feed bend board
Good quality electromagnetic clutch and brake system, feeding part can be controlled separately, easy operation.
Scorer wheel is adjustable, it suit to cardboard thickness 2-8mm
It can do second scorer, so correct bad creased board.

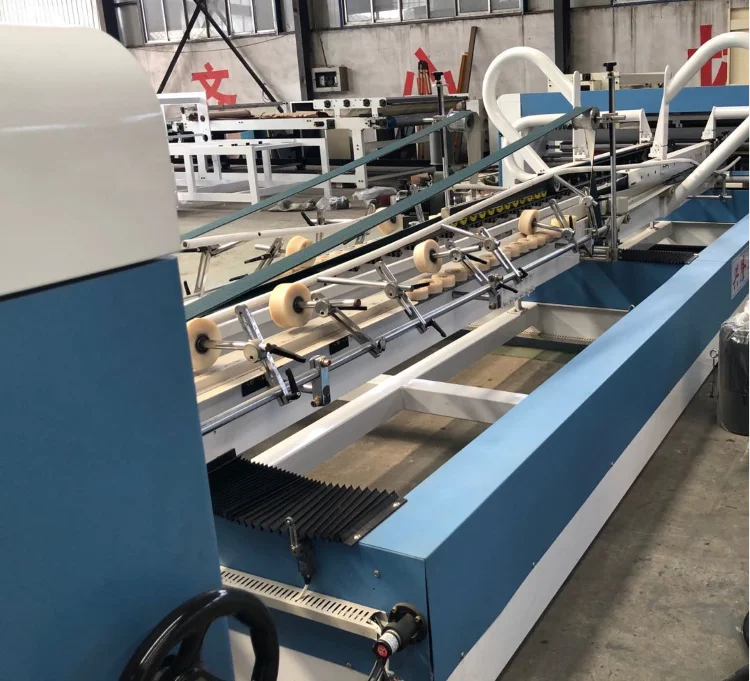

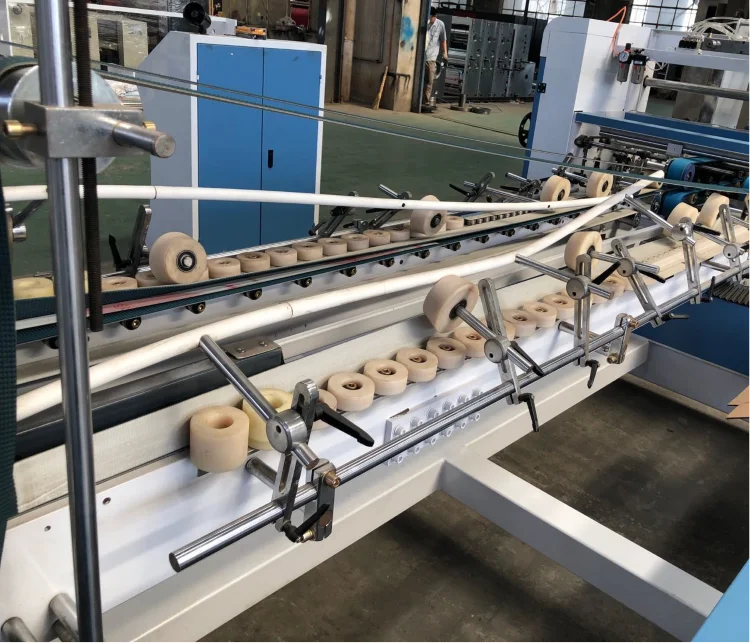

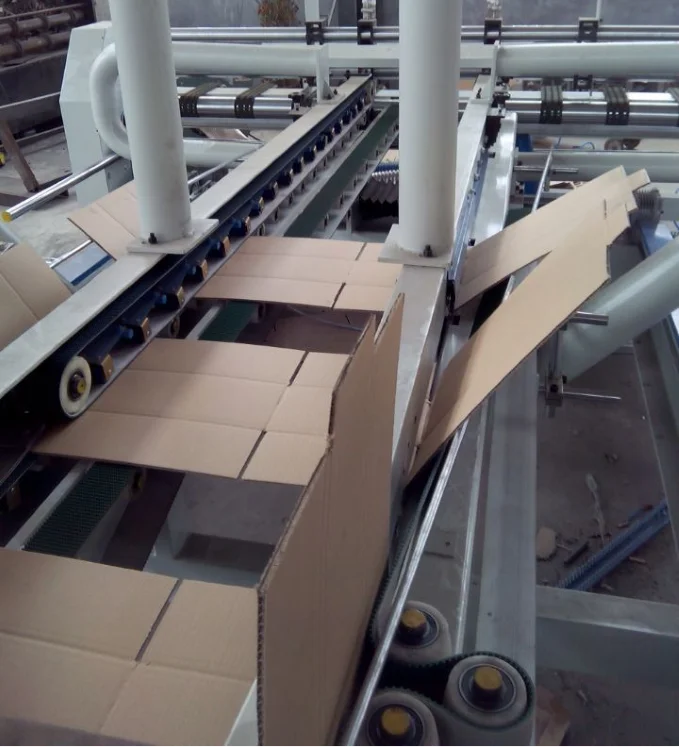

Folding & gluing part
Simple structure, glue amount can be adjustable, easy clean
It adopts stainless steel gluing wheel, gluing even, no fault save glue amount.
Automatically gluing, recycle glue, never stop, don’t need add glue by hand, save time and power.
Imported wearable rubber belt convey board, automatically folding.
Equipped with board correction and scorer correction device.

Counting & Stacking part
Stacking and counting are simple and reliable
Digital control, easy operation and reliable. Non-stop enter data, automatically counting and output accurately.
With correction function, correct deviation
Counting and output by pneumatic control, fast and accurately

Our company speciaized in carton machinery for many years in China. Our main products are: high speed automatic flute laminator/ semi-automatic flute laminator/ high speed single facer machine/ corrugated cardboard making line and so on. Our quality is high and price is low, hope we could build a long term business relations. Dongguang Haohan Carton Machinery Co., Ltd. is located in the south of Beijing and north of Jinan, so we have convenient land and water facilities. We are a professional enterprise with a large scale to produce carton machinery and printing machinery. Our company has 80 workers including 10 engineering and technical staff members with senior titles. Our company has capability of product design and perfect quality guarantee system. With perfect technology, complete machine, high specialization degree, rich manufacturing experience, strong technical force, advanced overhauling measures and integrated managing system, our company is like an up-and-coming youngster in the carton printing machinery industry in China. Part of the printing machines made by our company are exported to Southeast Asia, Western Asia, the Middle East and South America. 3 Layer 5 Layer Carton Folder Gluer Machine Fully Automatic Pneumatic Driven
